CHEK-WAY®
Eliminator
Multi-Functional and Multi-Axle Group Electronic weighing and Data Monitoring Systems
CHEK-WAY the original Smart OBM System and is now a lot Smart-R ©
Tramanco’s CHEK-WAY® Eliminator series of electronic OBM system for trucks and trailers, cranes and WAY-Bridges allow you to accurately acquire the necessary information to improve your operations, maximize payloads, and ensure compliance all from the ONE System, ONE Manufacturer, with ONE Responsibility to you – the owners
Bankable Benefits
- Maximize Payloads & Profit
Eliminate costly underloading or incorrect loading on every trip. - Decrease Wasted Time
Eliminate lost time and expense at public weighbridges with instant weight measurements. - Invoice Correctly & Instantly
Eliminate lost loads and ensure with precise, immediate invoicing for better cash flow. - Streamline Your Workflow
Drastically reduce physical paperwork and get immediate on-board quality assurance every load. All the above from the one CHEK-WAY system. That is why we call it the ELIMINATOR.
Data Integrity
- Reduce Chain of Responsibility
and lower your Chain of Responsibility risk with accurate, on-board data every trip. - Certified & Compliant
Fully meets ISO 9001 standards and current PBS/HML recommendations. - Tamper-Evident Data
Secure weight records, providing a reliable data trail for compliance purposes. - Instant Proof of Delivery
Utilize the Phone-WAY options for on-the-spot documentation of pick-up or delivery. - TRAK-N-WAY for TMA and RIM compliance as well as monitoring rates of suspension and road wear.
Smart-R Integration
- Seamless Software Integration
Works with existing AUTO-ID® and AUTO-CAL® systems for simple interoperability. - Connect Your Fleet
Integrates directly with on-board computers, GPS, and GPRS for unified tracking. - Remote Monitoring
Use the Phone-Way mobile app to monitor weights and fleet status from anywhere. - Versatile Industry Applications
Ideal for trucks, trailers, mining, agriculture, waste collection, cranes, side-loaders, VGM container weighing with integrated accurate container ID
Core System & Hardware
- Flexible Power Inputs: Runs on a 12/24V DC supply and features an ignition-activated back-lit LCD.
- Multi-Sensor Compatibility: Works with any combination of Air and/or Hydraulic, Front Axle, and/or Load Cell weight sensors.
- Versatile Calibration: Supports dual calibration for specialized hardware like lift axles and sliding turntables.
- Compliance Software: Features INS-COM® Software for road-friendly suspension and last-mile access tests and reporting in real time.
Operator Interface
- Clear Backlit Display: A dual-line LCD screen provides excellent visibility for day and night operation.
- Precise Weight Monitoring: View weights in 10, 20, or 50 Kg increments, with overload and underload alarms for safety.
- Comprehensive Data Records: For load monitoring, Proof of Delivery (P.O.D.), with ID and time/date stamped records.
- User-Friendly & Secure: Simple push-button operation with in-built diagnostics and password protection.
Expansion Options
- Software Interoperability: Equipped with AUTO-ID® and AUTO-CAL® for seamless integration with any CHEK-WAY systems.
- Wireless & Mobile Access: Features Bluetooth and the Android App (Phone-Way) for remote access to all weights.
- GPS & Printing: Expand capabilities with an optional GPS interface and support for in-cabin or external printers.
- Enhanced ID & Control: Add barcode/RFID readers, driver ID’s, or a hand-held remote weight display.
Compare before you buy
See how CHEK-WAY stacks up against the competition with a comprehensive feature breakdown.
| Features | CHEK-WAY | Others |
| Dual-line LCD display for all channels | ✔ | – |
| Back lit display | ✔ | – |
| Display total/s and axle group weights simultaneously | ✔ | – |
| Net/gross push button | ✔ | – |
| Calibration data stored in each Smart-Amp, not in the display unit | ✔ | – |
| AUTO-ID and MANUAL-ID functions | ✔ | – |
| Up to eight axle groups in the one system | ✔ | – |
| Works with any make or model of load cell technology. (Air and hydraulic pressure transducer and load cells in any combination) | ✔ | – |
| With up to eight transducers and/or load cells per group | ✔ | – |
| Maximum of 64 load cells and/or transducers per system | ✔ | – |
| RF data link | ✔ | – |
| GPS Link | ✔ | – |
| Hand held remote weights display | ✔ | – |
| Remote Data Information Unit of upto 90m to monitor your CHEK-WAY scales | ✔ | – |
| In-built data log | ✔ | – |
| Real time clock with date stamp | ✔ | – |
| In-built self-diagnostics and tamper evident reports | ✔ | – |
| Password protected | ✔ | – |
| Unique Security processors | ✔ | – |
| Automatic calibration recording with unique calibration recording function | ✔ | – |
| Standard printer interface | ✔ | – |
| Modular Construction | ✔ | – |
| 12 or 24 volt operations | ✔ | – |
| Standard and customised software programs | ✔ | – |
| RFID tag interface | ✔ | – |
| In service conformance for mass management | ✔ | – |
| Tamper proof with evidentary data records | ✔ | – |
| Companion app for Android and Apple devices | ✔ | – |

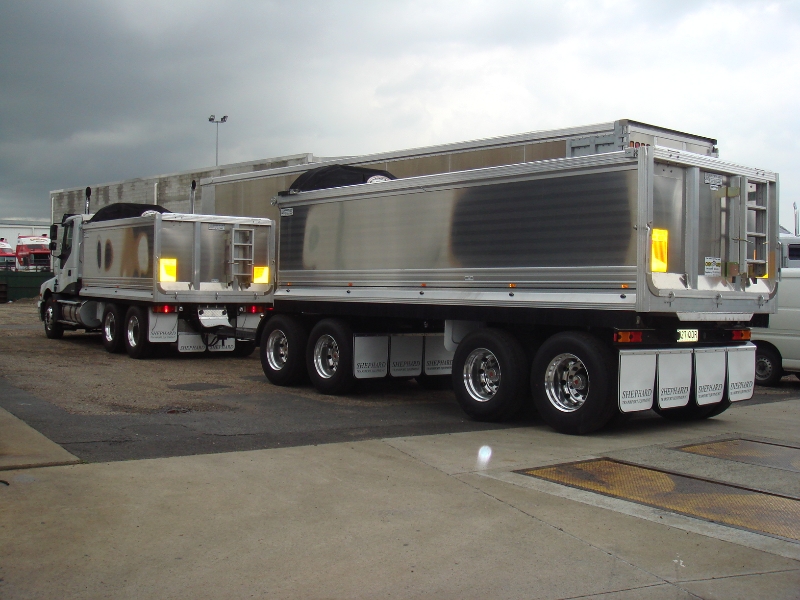

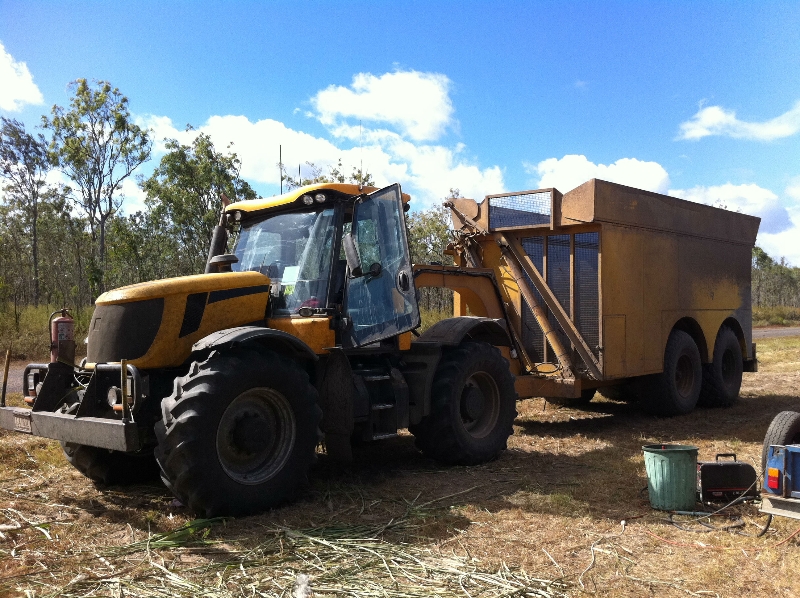

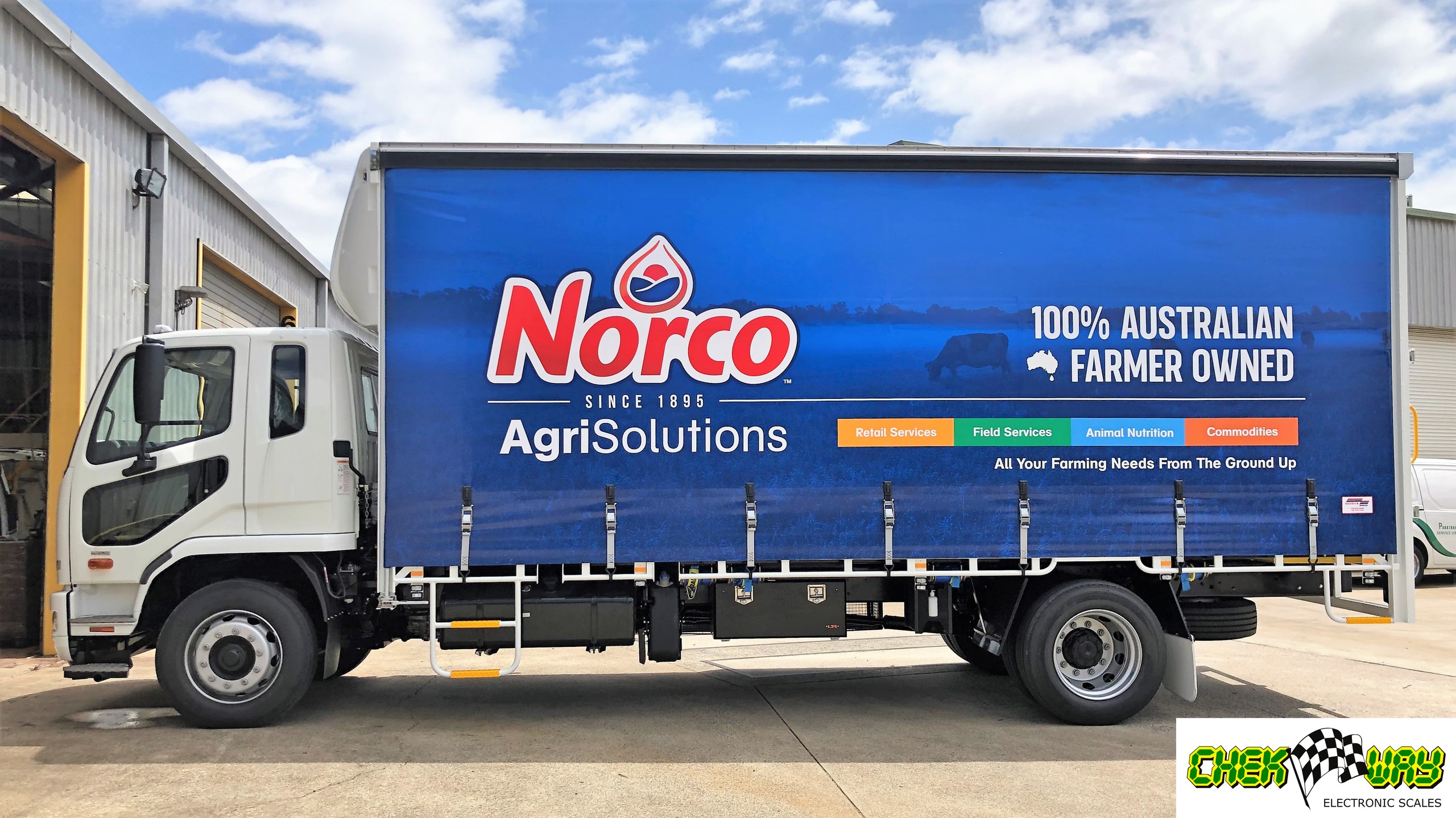

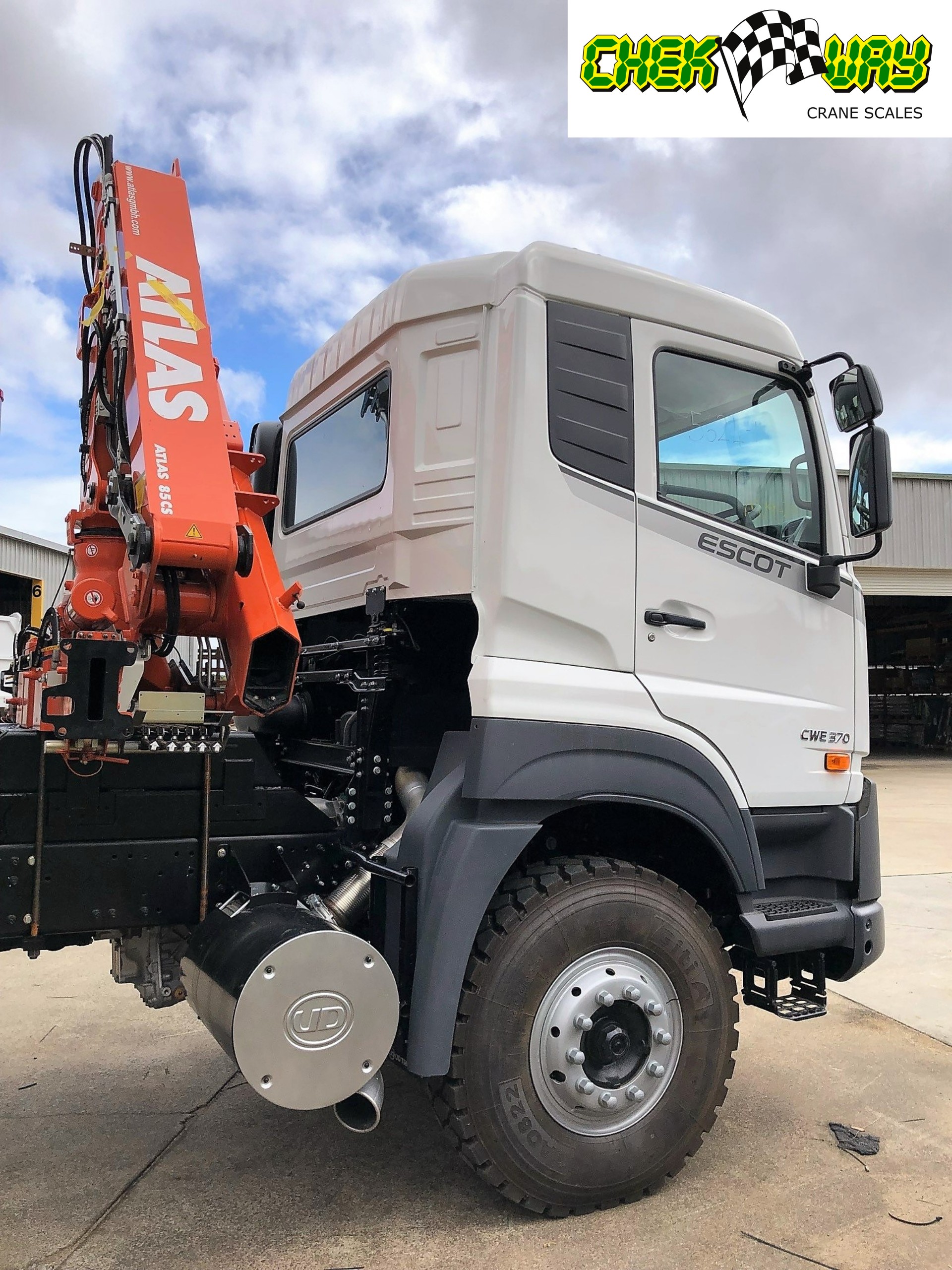

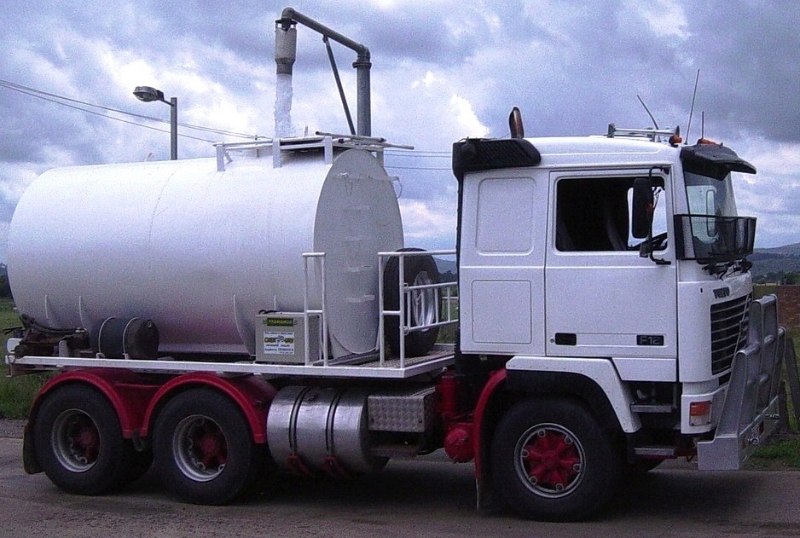

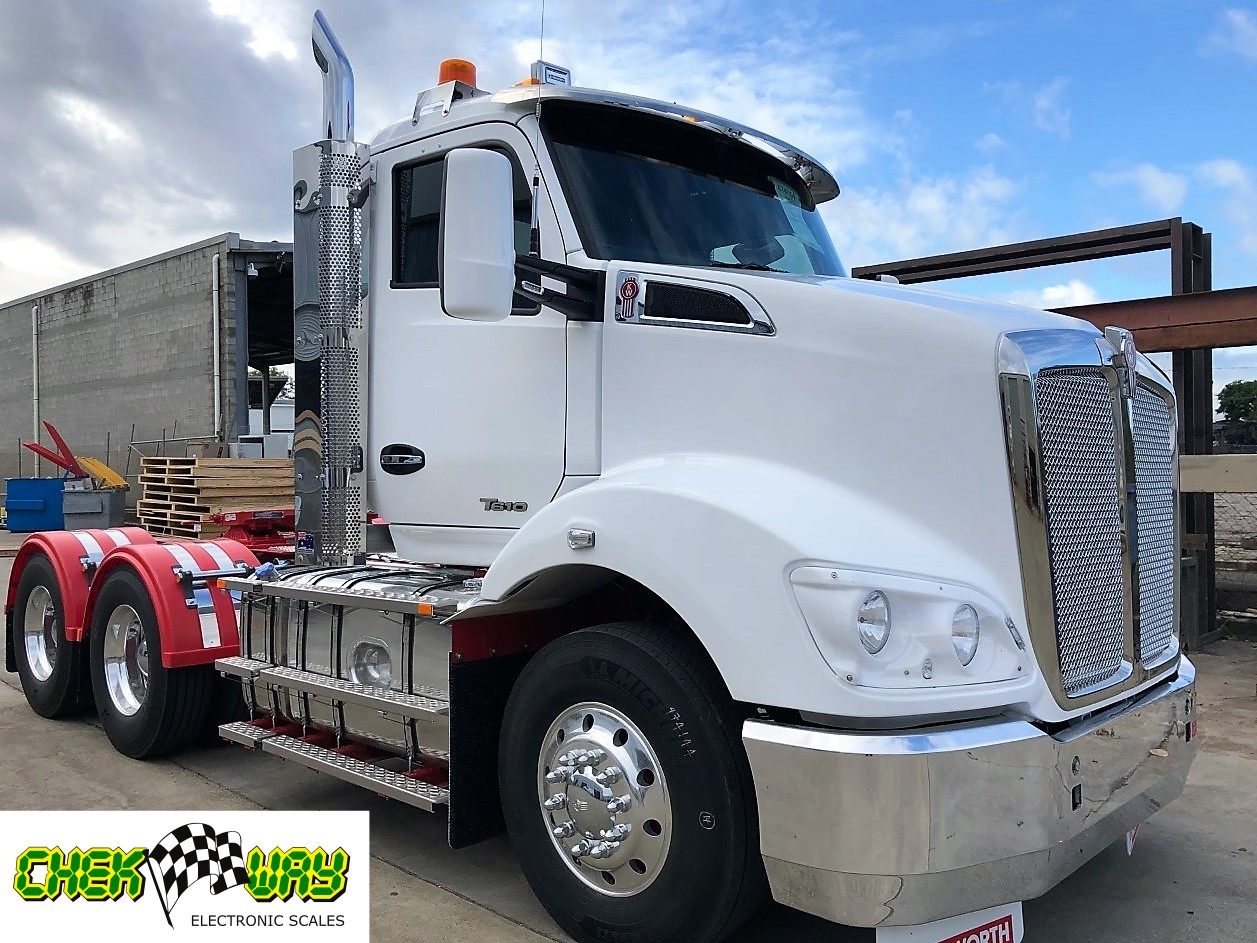

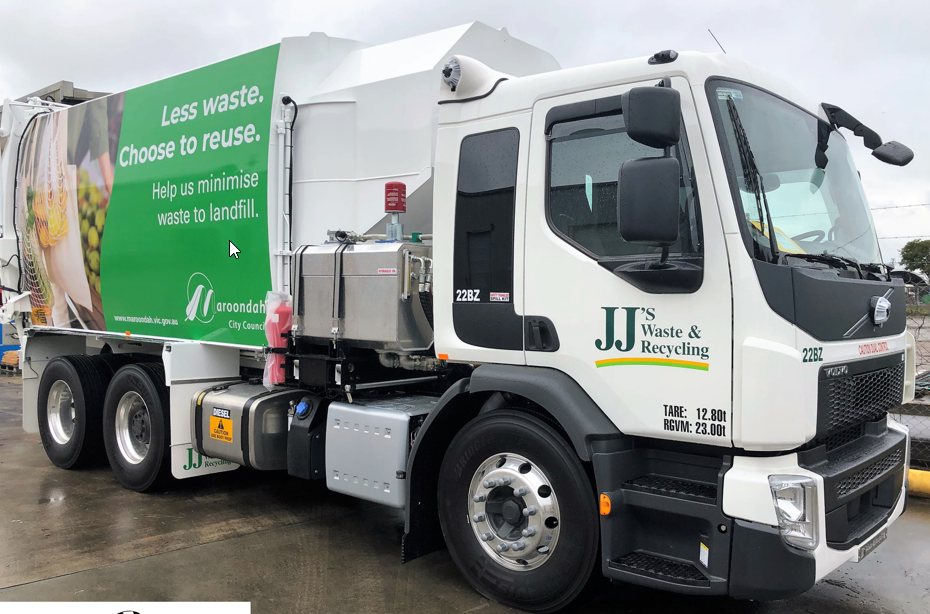

Installations Gallery
Remember, You can not manage what you do not know.
Remember, Lost paper work presents a time consuming problem.
Remember, You now have the answer within your grasp.
Remember, The future in weighing is here now!
Remember, one weigh or the other it’s
