Kwik-Chek®
Dual axle channel electronic on-board scales are
Australian designed and manufactured for peak performance just like its Big Brother the CHEK-WAY® ELIMINATOR
Tramanco’s KWIK-CHEK® dual or single channel electronic truck and trailer weighing systems offer convenience, practicality, productivity, and profitability in a simple robust yet compact unit with our optional Bluetooth interfaces for weighing multi-combination vehicles, as well letting you focus on what’s important, total control of the job at hand.
“Kwik and Simple”

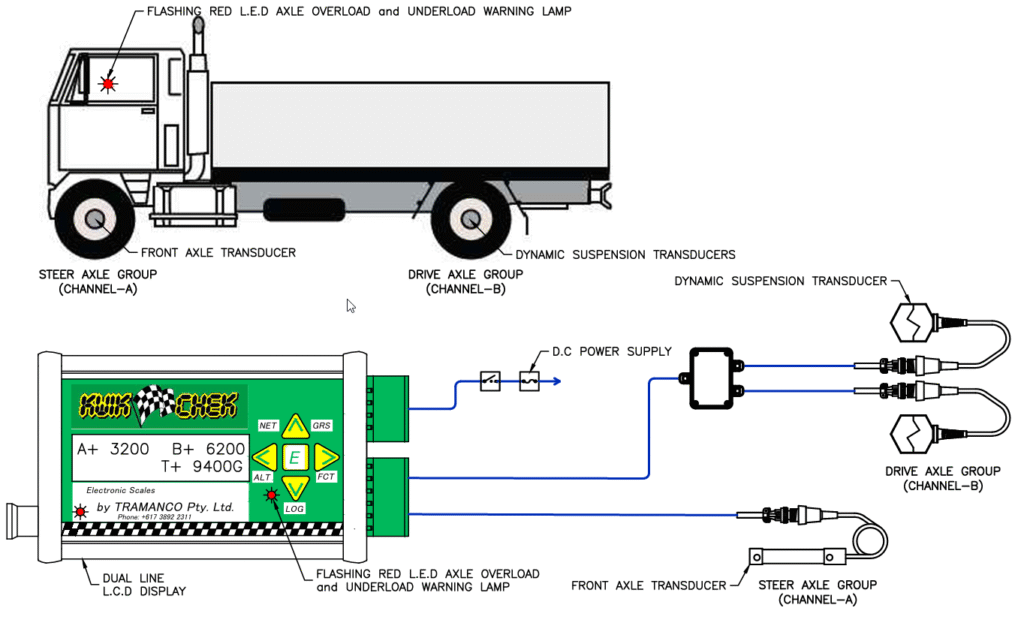

The KWIK-CHEK® cab mounted display is mounted in a robust aluminium (not plastic) case and is an affordable, accurate and reliable way to obtain the weights of single or dual axle groups. KWIK-CHEK® is an economical, high performance on board electronic scale for anyone concerned about, productivity and profitability. KWIK-CHEK® lets you focus on what’s important, total control of the job at hand. KWIK-CHEK® monitors air and hydraulic suspensions, as well as your steer axles and load cell systems. It monitors all axle groups on trucks/ semi-trailers, dog-trailers as a stand alone systems which can be indiuvidually or collectively monitor with our Phone-WAY® long range Bluetooth functions. Weights appear in real time and can be displayed in Net or Gross with the push of a button. KWIK-CHEK® is an investment in your business, providing convenience and affordability with a Kwik and effortless way to position vehicle loads, thus reducing under loading and incorrect loadings on every trip out and back.
Key Business Outcomes
- Improve Profitability Maximize your payload on every trip by minimizing costly underloading or overloading with automatic setpoint alarms.
- Increase Productivity Streamline your weighing process and significantly reduce physical paperwork with our optional Phone-WAY remote data monitoring and recording functions.
- Enhance Compliance Assist with regulatory adherence and reduce your Chain of Responsibility and other related exposures.
Core Specifications
- Flexible Power input Activation Runs on a 12/24V DC power supply with a convenient ignition-activated display.
- Versatile Axle Support Easily configured to monitor either one or two separate axle groups as well as multiple vehicle configuration with our optional Phone-WAY remote data monitoring and recording functions.
- Multi-Sensor Compatibility Works with any type of Air, Hydraulic or steel spring suspensions on Front Axle, Drive Axle or Load Cell sensors.
- Intuitive Operation User-friendly, compact design with simple push-button controls and clear overload warnings. on the LED on the front of the display with ignition, in cabin and/or external audio-visual alarms. your choice, again.
Display & Operator Features

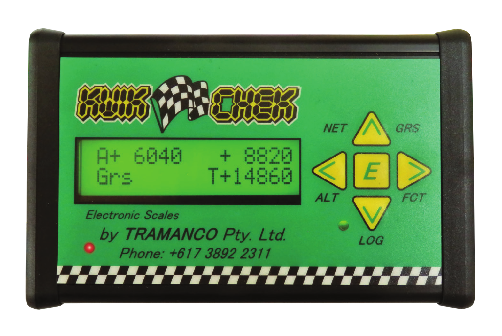

- All-in-One Weight View A dual-line backlit LCD shows all axle group and total weights on a single screen.
- Detailed Weight Data Toggle between Net/Gross weights, displayed in selectable 10, 20, or 50 Kg increments.
- On-Board Data Logging Records time, date, and load info for Proof of Delivery and features two custom set-points.
- Multi vehicle Phone-WAY interface allows you to monitor any vehicle so equipped as single units or multiple units in combination up to 90M away.
- Enable one on one remote contact between the driver and the loader operator at all times.
Remember, You can not manage what you do not know.
Remember, Lost paper work presents a time consuming problem.
Remember, You now have the answer within your grasp.
Remember, The future in weighing is here now!
